Yamal 601 @ 49° - 40 E- c band T2-MI discussion

ooOO_SORGOS_OOoo

Donating Member
Messages
2,986
hi dear

i have got t2-mi support sat receiver and c band lnb and dish antenna

how to setup this satellite?

i dont have got seperate for c band lnb


Ratzvan

Feed Hunter
Messages
15,225
hi dear

i have got t2-mi support sat receiver and c band lnb and dish antenna

how to setup this satellite?

i dont have got seperate for c band lnb
If your receiver is not an enigma2 and support T2-MI there are not particular problem.
Usually an automatic search is enough. Then yo ou can add manually the possible missing transponders.
O.L has to be set to 5150. Satellite signal is usually very strong there (y)


ooOO_SORGOS_OOoo

Donating Member
Messages
2,986
i will try and i write here

you think, i dont need c band lnb seperate?


Ratzvan

Feed Hunter
Messages
15,225
I can't understand. You need a C-band lnb with a dielectric plate (40°E has circular polarization). If you have a C/KU band lnbf you can check both with a standard diseqc


fiji

Active member
Messages
950
Hi!
T2-MI Receiver work with blind scan option those transponder can't scan channels in normal hd receivers .
You need this type Normal C-band LNB With dielectric plate For 40E satellite for other c-band reception use without dielectric plate .
boa atm


ooOO_SORGOS_OOoo

Donating Member
Messages
2,986
40e- dielectric using yes?

other sats- not need? correct ?

thankyou friends


EnoSat

Well-known member
Messages
1,241

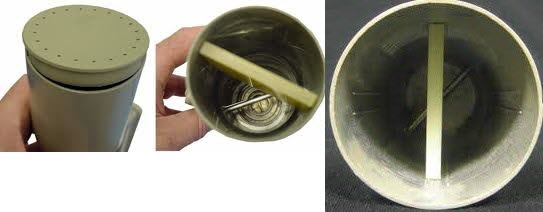

with dielectric plate - L/R polarization
without dielectric plate - V/H polarization


ooOO_SORGOS_OOoo

Donating Member
Messages
2,986
i did buy c band lnb america but not in box dielectric plate

can i make plate?


EnoSat

Well-known member
Messages
1,241


fiji

Active member
Messages
950
40e- dielectric using yes?

other sats- not need? correct ?

thankyou friends
My Freind!
If you are using dielectric then normal H/V polarastion's signal go to weak or may be no signal
dielectric use for only L/R polarity circulation satellites . (Normal H/V No need)
if not available try it your own can make it easy with a plstic piece .

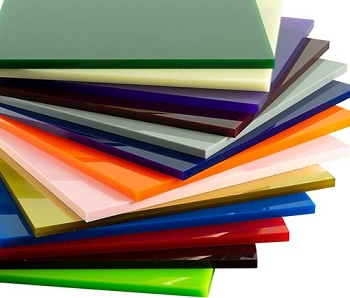

(Acrylic Sheet)


mrhardylima

Member
Messages
243
The Dialectic Plate is used for only L/R satellites, for those like 55.5W that are H/V the plate is not needed.
You can take 40.5W as example that the plate must be used.


EnoSat

Well-known member
Messages
1,241
did you not read the title of the topic? wants

Yamal 601 @ 49° - 40 E​
