New receiver Gigablue UHD Quad 4K Pro.

kegnkiwi

Staff member
Moderator
Messages
1,404

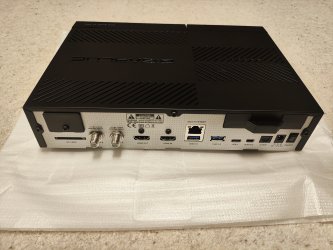

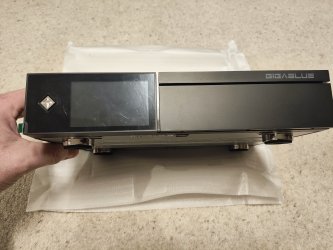

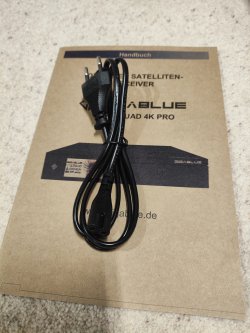

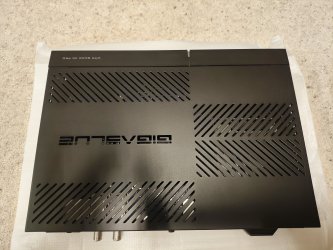

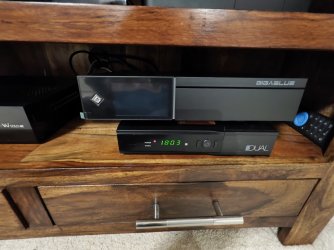

Today i received a new receiver that i have been reading about for sometime. Below are the main points taken from another site. The photos are mine. I have not played with the box yet as its christmas present but i did take it out the box and put it next to a couple satellite receivers to give an idea of size. I have pasted the main features below.

Main features

CPU:
Broadcom BCM7252S 12K DMIPS Dual Core ARM Processor
ARM CPU (2x 1,700 MHz) QuadCore processor
OGLES3.1, 4k60 HEVC/VP9

Memory:
RAM: 4GB DDR4
Flash memory: 8GB eMMC

Display:
3" LCD color display

USB ports:
4 x USB 3.0

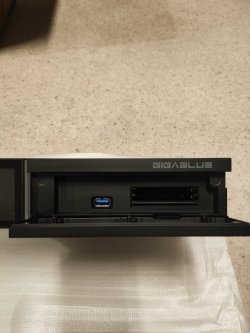

1 x Front USB A
2 x Rear USB A
1 x Rear USB C Host

Connectivity:
2 x CI (Common Interface)
1 x Smartcard reader
1 x HDMI input 2.0
1 x HDMI output 2.0
1 x optical audio output
1 x Mini USB (service port)
1 x Gigabit LAN (RJ-45/1000Mbps)
1 x SD card slot (SD Card 2.0 up to 25 MByte/s)

Internal features:
Internal HDD compartment for insertion
2 x full-band capture front end
Demodulator: 8 x DVB-S2 FBC (Full Band Capture) ex works
Plug-and-Play (PnP) GigaBlue Tuner v.5 (Optional) Dual DVB-C/T2
Built-in WiFi and Bluetooth module 5.4

Tuner option Plug-and-Play:
PnP Gigablue Single DVB-S2x Tuner v.2 (Optional)
PnP Gigablue Dual DVB-S2x Tuner v.2 (Optional)
PnP Gigablue Dual DVB-C/T2 Tuner v.2 (H.265) (Optional

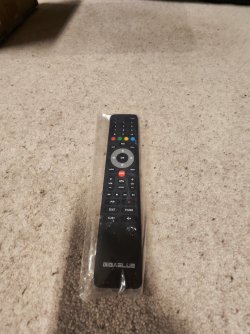

Remote control:
BT RCU (Bluetooth remote control)


Attachments

  • IMG_20241206_175912.jpg
    7.6 MB · Views: 93
  • IMG_20241206_180601.jpg
    2.2 MB · Views: 99
  • IMG_20241206_180401.jpg
    1.5 MB · Views: 108
  • IMG_20241206_180329.jpg
    1.4 MB · Views: 106
  • IMG_20241206_180224.jpg
    4.4 MB · Views: 97
  • IMG_20241206_180141.jpg
    5.3 MB · Views: 98
  • IMG_20241206_180134.jpg
    5.3 MB · Views: 104
  • IMG_20241206_180052.jpg
    4.3 MB · Views: 102
  • IMG_20241206_180038.jpg
    5.3 MB · Views: 94
  • IMG_20241206_175959.jpg
    4.8 MB · Views: 91
Last edited:

kegnkiwi

Staff member
Moderator
Messages
1,404
For me most important thing will be cooperation with CI+modules.
I've never used them but i think this one has 2 x ci slots. Others have been talking about this receiver being good a blind scans. Sure we will find out in time.


zuchnet

Member
Messages
64
Yes blindscan these days is also a very important thing (especially in E2 receivers).
What fw will you be based on ?
If possible, tell me how it works in new Gigablue I'm thinking about buying this box.


kegnkiwi

Staff member
Moderator
Messages
1,404
Yes blindscan these days is also a very important thing (especially in E2 receivers).
What fw will you be based on ?
If possible, tell me how it works in new Gigablue I'm thinking about buying this box.
I won't be using this box until christmas day but i have seen openatv images for it so i suppose this is what i will start with. I do not know what image it is shipped with.


Ferret

Marching On Together !
Staff member
Administrator
Messages
18,003
Most important feature for me is Blind scan with the new DVB-S2x Tuner v.2 if that works ill buy the Pro.

If not ill stick with my UE.


kegnkiwi

Staff member
Moderator
Messages
1,404
Most important feature for me is Blind scan with the new DVB-S2x Tuner v.2 if that works ill buy the Pro.

If not ill stick with my UE.
When they come into stock i will buy the extra tuner i did buy this one with the extra tuner but they told me no availability until late December or even into January.


piterfree

Senior Member
Messages
348
hi, currently I have the GigaBlu_UE twin very good and performing but currently I advise you not to install ATV 7.5.1 it has problems especially in recognizing the full space of the Flesch or various very good decoders and only once it gave me the problem of insufficient space and it happened now with this software, instead OpenPli 9.1 did not detect anything and is perfectly functional it has not had any problems, it is a decoder with a lot of potential and I use it only for collection and I only do backups for obby.

I bought the DVB-S2x tuners separately...multistream which to use you have to replace with DTT has the same slot to position them.


kegnkiwi

Staff member
Moderator
Messages
1,404
hi, currently I have the GigaBlu_UE twin very good and performing but currently I advise you not to install ATV 7.5.1 it has problems especially in recognizing the full space of the Flesch or various very good decoders and only once it gave me the problem of insufficient space and it happened now with this software, instead OpenPli 9.1 did not detect anything and is perfectly functional it has not had any problems, it is a decoder with a lot of potential and I use it only for collection and I only do backups for obby.

I bought the DVB-S2x tuners separately...multistream which to use you have to replace with DTT has the same slot to position them.
I have open atv 7.5.1 installed on the gigablue quak 4k pro, It is working ok for what I need but i cannot install anything from the usb stick. What i have done just use telnet to install plugins that i need. As of yet there are no open pli images for this box, or should i say available from their downloads.


kegnkiwi

Staff member
Moderator
Messages
1,404
It looks as though Egami might have an image for the gb quad 4k pro but I am yet to get my hands on it.


  • Like
Reactions: 117

kegnkiwi

Staff member
Moderator
Messages
1,404
hi, just installed Egami it seems the best for now on GigaBlu_UE

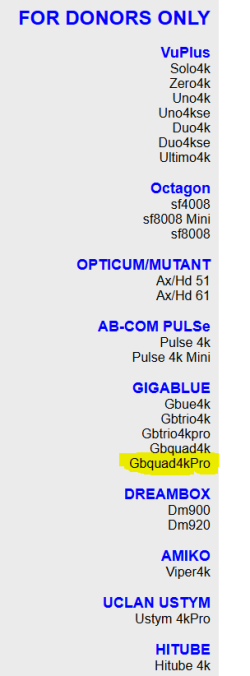

I am a member of there forum and i have been into the download and seen it was not available but i was thinking it could be available only to those who donate.


kegnkiwi

Staff member
Moderator
Messages
1,404

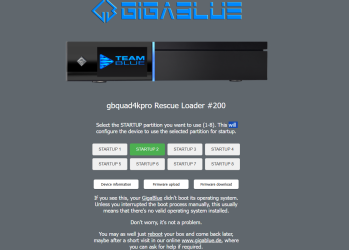

If anyone has one of these boxes here is the recovery method.

Recovery Mode:

1. Shut down the box completely

2. Switch off the box using the switch on the back (de-energize)

3. Hold down the power button and switch the box back on using the switch on the back

4. Continue to hold down the power button

5. A timer appears in the display 3 ... 2 ... 1 - keep the power button pressed

6. After the timer has expired, recovery mode is started - the power button can now be released

7. An IP address appears in the display (usually assigned by the router via DHCP)

8. Type the IP address into any browser of any device (computer (desktop/laptop), smartphone, tablet, etc.).

9. Voila! Recovery mode started and entered successfully

P.S. Also from what i have read you need to remove hard drive and and usb devices.

Attachments​

  • gigablue quad.png
    gigablue quad.png
    141.3 KB · Views: 0

Last edited:
