Method of Opening PowerVu Channels in Enigma2 Using Oscam

[EnoSat]

4.8 discovery channels not autoroll why not?

wrong set



[MBrincat]

Which PowerVu channels open with softcam.key?
I have black screens for Ippica (16E), TV5 Monde (1W), SIS chs (5E) but keys seem to be good as the P (for PowerVu) lights green on screen.
I am using OpenPli image on Vu+zero 4K



[Lexzie]

AFN on Eutelsat 9B at 9.0°E: 11804 V is working, with auto update.



[MBrincat]

AFN on Eutelsat 9B at 9.0°E: 11804 V is working, with auto update.

Are the other Chs opening? Tv5 monde, ippica, sis etc?



[EnoSat]

AFN uses CSA, SIS, SNAI, TV5 uses DES, choose the right API
Check the correctness in LiveLog



[MBrincat]

I don't know which settings I need.
Would appreciate more info pls.



[EnoSat]

LiveLog show channel hash and group id which must contain SoftCam.Key if automatic update from EMM is required
It also displays whether csaUsed DES or CSA is used

2024/10/05 12:33:56 4D070312 c   (dvbapi) Demuxer 0 restarting decoding requests after 0 ms with 1 enabled and 0 disabled ecmpids!
2024/10/05 12:33:56 4D070312 c   (dvbapi) Demuxer 0 trying to descramble PID 0 CAID 0E00 PROVID 000000 ECMPID 1775 ANY CHID PMTPID 0472 VPID 04D6
2024/10/05 12:33:56 4D070312 c      (ecm) get cw for ecm:
2024/10/05 12:33:56 4D070312 c      (ecm)   81 30 3D 30 37 20 0E 00 00 00 00 4D B0 00 88 D9
2024/10/05 12:33:56 4D070312 c      (ecm)   F4 14 18 13 1A A6 A2 17 B7 95 A0 BE 00 40 E0 09
2024/10/05 12:33:56 4D070312 c      (ecm)   00 9F 0F 75 63 7C A9 89 E1 00 12 35 B6 4E 63 CD
2024/10/05 12:33:56 4D070312 c      (ecm)   7D F9 80 06 7C 1D 18 F6 7D FB E6 AA AF E1 B5 2A
2024/10/05 12:33:56 37C98EE5 r      (emu) csaUsed: 0, xorMode: 0, ecmSrvid: 040E, hashModeCw: 0, modeCW: 0
2024/10/05 12:33:56 37C98EE5 r      (emu) channel hash: 32D2A9BD, group id: 3592
2024/10/05 12:33:56 37C98EE5 r      (emu) Key not found or invalid: P ****040E 01
2024/10/05 12:33:56 37C98EE5 r      (emu) Key not found or invalid: P 3592FFFF 01
2024/10/05 12:33:56 37C98EE5 r      (emu) ECM failed: Key not found
2024/10/05 12:33:57 37C98EE5 r      (emu) Writing key file: /var/keys/SoftCam.Key
2024/10/05 12:33:57 37C98EE5 r      (emu) Key written: P 3592FFFF 00 8216312CF32D44
2024/10/05 12:33:57 37C98EE5 r      (emu) Key found in EMM: P 3592**** 00 8216312CF32D44 ; UA: 00505BE7
2024/10/05 12:33:57 37C98EE5 r      (emu) Writing key file: /var/keys/SoftCam.Key
2024/10/05 12:33:57 37C98EE5 r      (emu) Key written: P 3592FFFF 01 E4D4C161C23D4A
2024/10/05 12:33:57 37C98EE5 r      (emu) Key found in EMM: P 3592**** 01 E4D4C161C23D4A ; UA: 00505BE7
2024/10/05 12:33:57 37C98EE5 r   (reader) EMU [emu] LOCAL emmtype=unique, len=155 (hex: 0x9B), cnt=1: written (3 ms)
2024/10/05 12:33:57 4D070312 c      (ecm) get cw for ecm:
2024/10/05 12:33:57 4D070312 c      (ecm)   80 30 3D 30 37 20 0E 00 00 00 00 4E B0 00 E3 F0
2024/10/05 12:33:57 4D070312 c      (ecm)   6F 8B 82 41 AE 18 0B 65 DF 39 7B 1A 00 40 E0 09
2024/10/05 12:33:57 4D070312 c      (ecm)   00 90 50 4E F4 EF 7D 1F 0A F7 A4 65 AF FA 8B 93
2024/10/05 12:33:57 4D070312 c      (ecm)   36 2D E1 10 7D 30 2F B8 B8 1F DF 30 DC 03 10 99
2024/10/05 12:33:57 37C98EE5 r      (emu) csaUsed: 0, xorMode: 0, ecmSrvid: 040E, hashModeCw: 0, modeCW: 0
2024/10/05 12:33:57 37C98EE5 r      (emu) channel hash: 32D2A9BD, group id: 3592
2024/10/05 12:33:57 37C98EE5 r      (emu) calculated cw 0: B93BB9D0C489BF6E
2024/10/05 12:33:57 37C98EE5 r      (emu) calculated cw 1: 20B90D676D40A4C4
2024/10/05 12:33:57 37C98EE5 r      (emu) calculated cw 2: CB9E46AE1FD30B64
2024/10/05 12:33:57 37C98EE5 r      (emu) calculated cw 3: BFE5CBC15162C78C
2024/10/05 12:33:57 37C98EE5 r      (emu) calculated cw 4: BFE5CBC15162C78C
2024/10/05 12:33:57 37C98EE5 r      (emu) calculated cw 5: BFE5CBC15162C78C
2024/10/05 12:33:57 37C98EE5 r      (emu) calculated cw 6: D6A27FFB13F1735D
2024/10/05 12:33:57 37C98EE5 r      (emu) calculated cw 7: F88C7531D0830201
2024/10/05 12:33:57 4D070312 c      (ecm) LOCAL (0E00&/040E/1775/0000/40_B93BB9D0C489BF6E0000000000000000 HOP:00:0000_0000): found (1 ms) by EMU (L/1/10/10) - FEED OCCAS HD (lg)
2024/10/05 12:33:57 4D070312 c      (ecm) cw:
2024/10/05 12:33:57 4D070312 c      (ecm)   B9 3B B9 D0 C4 89 BF 6E 00 00 00 00 00 00 00 00

2024/10/05 12:52:02 4D070312 c      (ecm) get cw for ecm:
2024/10/05 12:52:02 4D070312 c      (ecm)   80 30 96 50 3F 20 0E 00 83 08 F2 31 64 9E A5 19
2024/10/05 12:52:02 4D070312 c      (ecm)   B2 E2 00 B4 B0 80 71 47 F9 28 3F 75 AF 23 F6 AD
2024/10/05 12:52:02 4D070312 c      (ecm)   C5 EE 8B 75 F7 06 D0 00 00 4A 1B 22 07 3E 90 07
2024/10/05 12:52:02 4D070312 c      (ecm)   E7 D9 76 2C 62 D8 A4 CC 06 D1 CE 1E 9F 1B B4 00
2024/10/05 12:52:02 4D070312 c      (ecm)   2E F3 E2 40 30 10 27 0E 00 00 00 80 00 AA 71 1F
2024/10/05 12:52:02 4D070312 c      (ecm)   C2 73 49 F1 19 BE 30 10 27 0E 00 00 00 20 00 FC
2024/10/05 12:52:02 4D070312 c      (ecm)   C7 6A 65 67 4E 48 2F 22 30 0D 28 0E 00 00 00 46
2024/10/05 12:52:02 4D070312 c      (ecm)   95 C2 04 21 60 7E E3 30 1C 29 0E 00 00 00 40 FD
2024/10/05 12:52:02 4D070312 c      (ecm)   7A 1D 58 E1 22 EA 63 02 C8 26 C7 B1 66 6C 35 B8
2024/10/05 12:52:02 4D070312 c      (ecm)   99 B4 2F 69 CB 51 DE 9C 20
2024/10/05 12:52:02 37C98EE5 r      (emu) csaUsed: 1, xorMode: 0, ecmSrvid: 006D, hashModeCw: 37, modeCW: 0
2024/10/05 12:52:02 37C98EE5 r      (emu) channel hash: 9798A8F2, group id: 0090
2024/10/05 12:52:02 37C98EE5 r      (emu) Key not found or invalid: P ****006D 01
2024/10/05 12:52:02 37C98EE5 r      (emu) Key not found or invalid: P 0090FFFF 01
2024/10/05 12:52:02 37C98EE5 r      (emu) ECM failed: Key not found
2024/10/05 12:52:02 4D070312 c   (dvbapi) Demuxer 0 restarting decoding requests after 0 ms with 1 enabled and 1 disabled ecmpids!
2024/10/05 12:52:02 4D070312 c   (dvbapi) Demuxer 0 trying to descramble PID 1 CAID 0E00 PROVID 000000 ECMPID 17B1 ANY CHID PMTPID 13F5 VPID 0429
2024/10/05 12:52:02 37C98EE5 r      (emu) Writing key file: /var/keys/SoftCam.Key
2024/10/05 12:52:02 37C98EE5 r      (emu) Key written: P 0090FFFF 00 F775FFBD7F0CB8
2024/10/05 12:52:02 37C98EE5 r      (emu) Key found in EMM: P 0090**** 00 F775FFBD7F0CB8 ; UA: 005D671E
2024/10/05 12:52:02 37C98EE5 r      (emu) Writing key file: /var/keys/SoftCam.Key
2024/10/05 12:52:02 37C98EE5 r      (emu) Key written: P 0090FFFF 01 4B500B3E341D48
2024/10/05 12:52:02 37C98EE5 r      (emu) Key found in EMM: P 0090**** 01 4B500B3E341D48 ; UA: 005D671E
2024/10/05 12:52:02 37C98EE5 r   (reader) EMU [emu] LOCAL emmtype=unique, len=155 (hex: 0x9B), cnt=1: written (3 ms)
2024/10/05 12:52:03 37C98EE5 r      (emu) Key found in EMM: P 0090**** 00 F775FFBD7F0CB8 ; UA: 005D6802
2024/10/05 12:52:03 37C98EE5 r      (emu) Key found in EMM: P 0090**** 01 4B500B3E341D48 ; UA: 005D6802
2024/10/05 12:52:03 37C98EE5 r   (reader) EMU [emu] LOCAL emmtype=unique, len=155 (hex: 0x9B), cnt=1: written (2 ms)
2024/10/05 12:52:11 4D070312 c      (ecm) get cw for ecm:
2024/10/05 12:52:11 4D070312 c      (ecm)   81 30 96 50 3F 20 0E 00 FF 08 08 68 DF 41 60 A6
2024/10/05 12:52:11 4D070312 c      (ecm)   7A 83 00 B6 B0 80 DA 9E DC AE 9E 20 DC 3B 34 95
2024/10/05 12:52:11 4D070312 c      (ecm)   0C D3 34 26 3F 06 D0 00 00 5B C8 D5 85 38 D5 13
2024/10/05 12:52:11 4D070312 c      (ecm)   28 17 1C 26 30 E9 8A 72 2A 08 30 52 D8 10 61 DA
2024/10/05 12:52:11 4D070312 c      (ecm)   87 61 DA EE 30 10 27 0E 00 00 00 80 00 27 F5 BB
2024/10/05 12:52:11 4D070312 c      (ecm)   6B 75 E8 03 DA 04 30 10 27 0E 00 00 00 20 00 4E
2024/10/05 12:52:11 4D070312 c      (ecm)   60 A6 B4 8D C0 8F CE 2E 30 0D 28 0E 00 00 00 51
2024/10/05 12:52:11 4D070312 c      (ecm)   3F B1 9C DB BA 12 FE 30 1C 29 0E 00 00 00 CC A4
2024/10/05 12:52:11 4D070312 c      (ecm)   24 BB 4E 54 18 C5 5A 7B 6A C4 24 EE CE CF AC 90
2024/10/05 12:52:11 4D070312 c      (ecm)   E1 54 AC 7F 1E EC 70 60 F6
2024/10/05 12:52:11 37C98EE5 r      (emu) csaUsed: 1, xorMode: 0, ecmSrvid: 006D, hashModeCw: 37, modeCW: 0
2024/10/05 12:52:11 37C98EE5 r      (emu) channel hash: 9798A8F2, group id: 0090
2024/10/05 12:52:11 37C98EE5 r      (emu) calculated cw 0: EE02130339693ADC
2024/10/05 12:52:11 37C98EE5 r      (emu) calculated cw 1: 2B31BD194C813906
2024/10/05 12:52:11 37C98EE5 r      (emu) calculated cw 2: EE02130339693ADC
2024/10/05 12:52:11 37C98EE5 r      (emu) calculated cw 3: CEEDC27DB4A9B512
2024/10/05 12:52:11 37C98EE5 r      (emu) calculated cw 4: CEEDC27DB4A9B512
2024/10/05 12:52:11 37C98EE5 r      (emu) calculated cw 5: CEEDC27DB4A9B512
2024/10/05 12:52:11 37C98EE5 r      (emu) calculated cw 6: 2C4B1E95CCDD46EF
2024/10/05 12:52:11 37C98EE5 r      (emu) calculated cw 7: 47E31E48CCDD46EF
2024/10/05 12:52:11 4D070312 c      (ecm) LOCAL (0E00&/006D/17B1/0000/99_82B06C9E6D26891C0000000000000000 HOP:00:0000_0000): found (2 ms) by EMU (L/1/11/11) - AFN (lg)
2024/10/05 12:52:11 4D070312 c      (ecm) cw:
2024/10/05 12:52:11 4D070312 c      (ecm)   82 B0 6C 9E 6D 26 89 1C 00 00 00 00 00 00 00 00

If using OE2.0 extended_cw_api should be set to:

[dvbapi]
enabled                       = 1
au                            = 1
pmt_mode                      = 0
#request_mode                  = 1
user                          = LOCAL
read_sdt                      = 1
write_sdt_prov                = 1
extended_cw_api               = 1
boxtype                       = dreambox

If the PowerVu ECM contains nano01 "80 30 3D 40 37 20 0E 00 01 00 00 C1 B0 00 5B B3" the current EMU cannot manage it

2024/10/05 13:01:27 4D070312 c   (dvbapi) Demuxer 0 restarting decoding requests after 0 ms with 1 enabled and 0 disabled ecmpids!
2024/10/05 13:01:27 4D070312 c   (dvbapi) Demuxer 0 trying to descramble PID 0 CAID 0E00 PROVID 000000 ECMPID 1776 ANY CHID PMTPID 0473 VPID 04D7
2024/10/05 13:01:27 4D070312 c      (ecm) get cw for ecm:
2024/10/05 13:01:27 4D070312 c      (ecm)   80 30 3D 40 37 20 0E 00 01 00 00 C1 B0 00 5B B3
2024/10/05 13:01:27 4D070312 c      (ecm)   2A 58 4C 2D 8A CB D6 A3 94 29 FD B9 00 40 F0 15
2024/10/05 13:01:27 4D070312 c      (ecm)   40 0D 65 71 98 24 0A F5 4F 27 0F FA 28 1D 43 71
2024/10/05 13:01:27 4D070312 c      (ecm)   4F 4E 96 15 43 24 BB 87 58 9B 9E 71 D6 F9 A0 DB
2024/10/05 13:01:27 37C98EE5 r      (emu) csaUsed: 0, xorMode: 0, ecmSrvid: 040F, hashModeCw: 0, modeCW: 0
2024/10/05 13:01:27 37C98EE5 r      (emu) channel hash: 32D2A9BD, group id: 3592
2024/10/05 13:01:27 37C98EE5 r      (emu) Key not found or invalid: P ****040F 01
2024/10/05 13:01:27 37C98EE5 r      (emu) Key not found or invalid: P 3592FFFF 01
2024/10/05 13:01:27 37C98EE5 r      (emu) ECM failed: Key not found
2024/10/05 13:01:27 4D070312 c      (ecm) LOCAL (0E00&/040F/1776/0000/40_00000000000000000000000000000000 HOP:00:0000_0000): rejected  (1 ms) by EMU (F/10/10/10) - TIVI5MONDE (lg)
2024/10/05 13:01:27 4D070312 c      (ecm) cw:
2024/10/05 13:01:27 4D070312 c      (ecm)   00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00



[zeze04]

Hello . I would like to start using powervu channels with my vu+ receiver under openatv. I already have oscam with biss channels that work, as well as abertis. Could you please tell me the exact configuration I need to receive the following channels: MTNTV (Astra 4), AFN (9°) and tv5 monde (0.8°). Thank you.



[ooOO_SORGOS_OOoo]

Hello . I would like to start using powervu channels with my vu+ receiver under openatv. I already have oscam with biss channels that work, as well as abertis. Could you please tell me the exact configuration I need to receive the following channels: MTNTV (Astra 4), AFN (9°) and tv5 monde (0.8°). Thank you.

mtn doesnt work

afn
tv5 work oscam-emu, ncam, gcam, gbox



[EnoSat]

He didn't ask if they were working, but for the exact configuration.



[zeze04]

Thank you for your feedback. I find tutorials but not up to date.



[EnoSat]

It's not that difficult. Use oscam that is compiled with emu. Enable/create reader with emu. Set OE version in oscam.dvbapi. Use appropriate softcam.key.



[zeze04]

Thank you for your help. I managed to get AFN, as well as FEED occas hd (tv5), but not the other tv5 because there is a "nano". Is it possible to get the other TV5? Thank you



[EnoSat]

Not on public oscam-emu



[Crazy Sat]

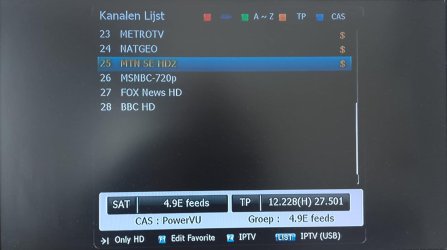

On Astra 4A (4.8°E) a transponder of the MTNTV package is active in muxx (MSNBC-720p,FOX News HD & BBC HD) Video codec is in AVC - 1280x720 - 60p - [16:9] - SDR . I only get a lock on the Octagon sf8008 & Edision mio 4K. On my TBS5927 no lock with DVBDream or EBS Pro. The image is in blocks and unstable. Does this have something to do with PowerVU or with the video codec? However, the receiver indicates FTA.



[EnoSat]

Everything is coded as usual (why do you have 12243 H set?)



[Crazy Sat]

(why do you have 12243 H set?)

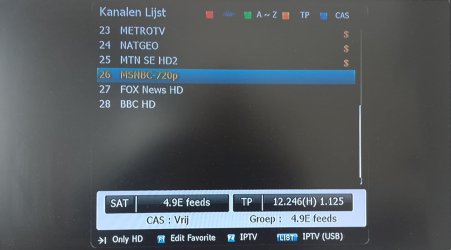

Do a blind scan with the TM-5402 HD M3 between 12200 - 12300 H and you get two transponders 12228 H 27500 (25) and 12246 H 1125 (3).
With all other enigma2 receivers I do not get 12246 via blind scan only the 12228.
Also with the TBS5927 no result via blind scan.

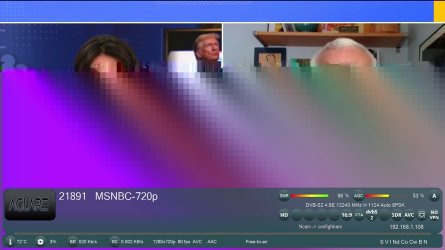

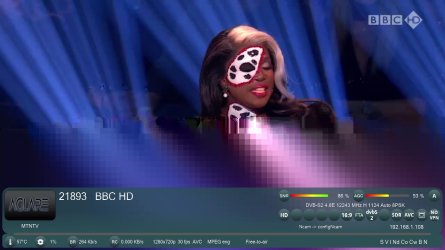

The image on the TM-5402 HD M3 is FTA but with many blocks.
These three channels are not coded.



[Butacas]

Yes, they are FTAs. Further investigation is needed.



[EnoSat]

300~500 kB is small enough for a video stream



[Butacas]

Even if they are between 300 and 500 kB and we cannot reproduce them correctly. Those three channels make some sense. Why? I have no idea.


Here I lost the signal



Trying to "play" with rendering:
