AB CryptoBox 3xx/4xx/5xx/6xx/7xx

marce · Jan 9, 2011

AB CryptoBox 300HD&350HD Products AB IPBox

Code:

Technical specifications


General
System standard 	MPEG-Fully DVB-S / DVB-S2 HD compliant
Signal Level 	-65dBm to -25dBm
LNB power supply 	Vertical polarization voltage: +13V/+14V
Horizontal polarization voltage: +18V/+19V
Horizontal polarization voltage 	+18V/+19V
Overload protection 	Max. current – 500mA
22KHz Tone: Frequency 	22±1KHz
DiSEqC: Amplitude 	0.6±0.2V (Version 1.0, 1.1, 1.2, USALS)
Demodulation 	QPSK, 8PSK
Symbol Rate 	2-45 Mbps
Convolution Code Rate 	1/2, 2/3, 3/4, 5/6, 7/8 i Auto
CPU
Type 	Ali 3602, 396 MHz
A/V Mode
Video format 	MPEG-II Main profile/Main level
Audio format 	MPEG-II layer I&II, AC3
Aspect Ratio 	16:9, 4:3 LB, 4:3 PS
Audio sampling rate 	32,44.1, 48kHz
Audio Type 	Mono Dual Mono, Stereo, Joint stereo
Graphic display 	720×576(PAL), 720×480(NTSC), 1280*720, 1920*1080(HDTV)
Memory
Flash Memory 	32MB
RAM 	128MB
Connection
LNB IN 	IEC 169-24 Female
LOOP OUT 	IEC 169-24 Female
RS232 	9 pin D Rs232 DCE serial port
Scart 	TV (CVBS/RGB)
Video 	Composite Video CVBS
Audio 	Audio left, Audio right
S/PDIF 	coaxial Digital Audio Output
USB 	1 slot USB 2.0
HDMI 	VER 1.2 Type A
Power & Environment Condition
Supply Voltage 	Free Voltage (100~250V AC, 50/60Hz)
Supply Power 	Max.12W
Operating temp 	5°C ~ 45°C
Storage temperature 	-10°C ~ +70°C
Storage Humidity 	5% ~ 95% RH (non condensing)
Physical Specification
LED display 	4Digits
Weight 	<1.5Kg
Dimensions 	220(W) x 160(D) x 40(H)mm

JAKITAKI · Feb 28, 2014

AB CRYPTOBOX 300,350_v1.4.42_mcas

Update : 07.02.2014

JAKITAKI · Feb 28, 2014

AB CryptoBox 600HD

Code:

View Technical specification


New Dual Core CPU 2 x 600 MHz
New genetration High speed memory DDRIII
IPTV – stream internet TV broadcast
Android App. for remote control box, adding and changing timer and streaming TV broadcast to your phone or tablet
FullHD resolution 1080p
1x DVB-S / DVB-S2 tuner
1x Card Reader
1x HDMI port
1x SCART
1x RS232
2x USB 2.0 ( 1x Front, 1x Rear panel )
1x LAN RJ 45
1x S/PDIF optical digital audio output
Chipset: ALI3511
Flash Memory: 8 MByte
DDRII Memory: 128 Mbyte
Signal Level -65 do -25 dBm
LNB power and polarization
Vertical: +13V/+14V,
Horizontal: +18V/+19V
Power max. 25W
Frequency range 950 MHz do 2150 MHz
Video resolution 1080i/p, 720p, 576i/p, 480i/p
DiseqC 1.0/1.1/1.2/1.3 USALS 13V/18V, 0/22K
7-segment Display
7-day electronic guide
Fast Scan
Time Shift recording and PVR function
PIG ( Picture in Graphic )
FTP manager, games, weather, stock market information, networking capability and many more…
Automatic PAL / NTSC conversion
6000 TV / Radio Stations
26 the favorite groups
Support FAT32 and NTFS
media player formats:
audio MP3, OGG, FLAC
video AVI, MKV,TS, TP, TRP, MPG, MP4
picture JPEG, BMP, GIF

AB CryptoBox 650HD

Code:

View Technical specification


New Dual Core CPU 2 x 600 MHz
New genetration High speed memory DDRIII
IPTV – stream internet TV broadcast
Android App. for remote control box, adding and changing timer and streaming TV broadcast to your phone or tablet
FullHD resolution 1080p
1x DVB-S / DVB-S2 tuner
1x Common Interface
1x Card Reader
1x HDMI port
1x SCART
1x RS232
2x USB 2.0 ( 1x Front, 1x Rear panel )
1x LAN RJ 45
1x S/PDIF optical digital audio output
Chipset: ALI3516
Flash Memory: 8 MByte
DDRII Memory: 128 Mbyte
Signal Level -65 do -25 dBm
LNB power and polarization
Vertical: +13V/+14V,
Horizontal: +18V/+19V
Power max. 25W
Frequency range 950 MHz do 2150 MHz
Video resolution 1080i/p, 720p, 576i/p, 480i/p
DiseqC 1.0/1.1/1.2/1.3 USALS 13V/18V, 0/22K
VFD Display
7-day electronic guide
Fast Scan
Time Shift recording and PVR function
PIG ( Picture in Graphic )
FTP manager, games, weather, stock market information, networking capability and many more…
Automatic PAL / NTSC conversion
6000 TV / Radio Stations
26 the favorite groups
Support FAT32 and NTFS
media player formats:
audio MP3, OGG, FLAC
video AVI, MKV,TS, TP, TRP, MPG, MP4
picture JPEG, BMP, GIF

Firmware AB CRYPTOBOX 600,650_

SW A=En-Hu-Pl-De-Ru-Cz-Sk-Ua
SW B=En-De-Gr-Bg-Ro-Hu-Tk-Ar
SW C=En-De-Nl-Tk-Ar-Fr-Es-It
SW D=En-De-Es-Pt-It-Fr-Ar-Tk

JAKITAKI · Feb 28, 2014

AB CryptoDroid

MORCTTyLHOW5CTUb7jrw3Opqc4bpT4UtW3MJF_vzFUP9WHX1HLsmV41V7pOhkAc16NE=w300-rw

Code:

! ! ! ! ! New APK 2.0.1457 supporting receivers with sw version V1.09.11433 ! ! ! ! !

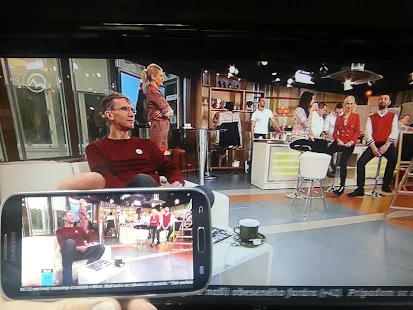

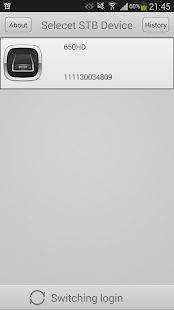

Stream your live channels from AB CryptoBox 6XX series satellite receiver to Android device , remote control your AB CryptoBox 6XX series satellite receiver and much more ! ! !
Please uninstall previous version first ! ! !
2.0.1457 UI changes, added Russian translation - supporting receivers with sw version V1.09.11433 ! ! !
2.0.1420 Minor UI changes, added satellite switch option - supporting receivers with sw version V1.09.11245
2.0.1368 Fixed crashes + minor UI changes - supporting receivers with sw version from V1.09.11005
2.0.1293 First build - supporting receivers with sw version V1.09.10436 and V1.09.10586

fHl9tY3x2dsOQnyjZOD2cS9QjUG_E4--DaSx6Mz2geKNRQJT12ezfzAH_QobI_V4fA=h310-rw

_7IBSf6-uHhvoI0hvYkAQ5mTssSls6Iu7UNLt2YhVdyaFQ7S7XZLAfBcpZjfmq4OU8M=h310-rw

9619m4Y-RCpmPtrTofiWBt7ZZ_KtDjuqTEO6Ay8gsgJgAM7VJga-4ShccbFyacC62Yc=h900-rw

OqnNtL1yRqE6LyyhWYUPjodjASmGxqNCGpynBwTMxuKdrJGE2UKZk6vumSya5L2I9us=h900-rw

****> AB CryptoDroid <<<

JAKITAKI · Feb 28, 2014

AB Cryptobox 650HD - DLNA DMR

http://youtu.be/4jvG7L_XMNQ

JAKITAKI · Feb 28, 2014

AB CryptoBox 6XX__V1.09.11433_PATCH

Added new option Auto DiseqC (finds automatically DiseqC of satellites 13E,19E,23E,28E + some more)
Added HDMI-CEC option
Added DLNA DMR application (Digital Media Renderer (DMR): play content by a digital media controller (DMC), which will find content from a digital media server (DMS)
- For android, as DMC can be used for example app. media house, mirageDLNA or any other
- For iOS, as DMC can be used for example app. MediaConnect
Added Email option (USB storage needed)
Added REC option for Youtube (files saved in folder HTTP DOWNLOAD)
Added REC option for YouPorn (files saved in folder HTTP DOWNLOAD)
3G modem support
Huawei E1550(WCDMA),
Huawei E1552(WCDMA),
Huawei E173(WCDMA),
Huawei E177(WCDMA),
ZTE MF180(WCDMA),
Alcatel X230E,
Huawei EC156(WCDMA2000),
Huawei E367(WCDMA),
Huawei E173u-1,
Huawei E173z-1,
ZTE MF190S
IP connection reboot fix for some routers
Port 8080 reboot fix
Auto summer time
Video file playback fix
Minor share fixes

JAKITAKI · Mar 1, 2014

Setting CryptoBox 6xx_PL_1x4

whoslooking · Mar 21, 2014

AB Cryptobox 650HD

how can I get into the CCcam in x-tras as pressing 0000 does not seem to do anything.

Any help would be good thanks

JAKITAKI · Mar 27, 2014

whoslooking said:
how can I get into the CCcam in x-tras as pressing 0000 does not seem to do anything.

Any help would be good thanks

- Info+000 (open patch)
- Menu>XTRA>0000 (emu)

JAKITAKI · Mar 27, 2014

AB_CR_550_MCAS_V1.09.11597

JAKITAKI · Apr 6, 2014

AB_CR_600 /650_V1.09.11598_MCAS_A

JAKITAKI · Apr 7, 2014

AB_CR_600 /650_V.09.11598_PATCH_A

JAKITAKI · Apr 8, 2014

Setting 2x1_AB_CR_6xx_byJAKITAKI_08042014

JAKITAKI · Apr 22, 2014

Setting 2x1_AB_CR_6xx_byJAKITAKI_18042014

FAV ::
1.FUll Polskie
2.NC+
3.Polsat
4.VOD-PPV
5.TnK SMART HD+
6.Bajki
7.Muzyka
8.Sport
9.News
10.Bis
11.Nova
12.ORF-AuSat
13.CanalSat
14.SkyItalia
15.SkyDeutschland
16.Canal+(Astra)
17.TNTSAT
18.RAI-TivuSat
19.SSR-SRG
20.FTA Polskie
21.FTA Russian-WNP
22.FTA Italian
23.FTA English
24.FTA French
25.FTA Deutschland
26.XXX

peterblace · May 8, 2014

I'm new to the sat scene and recently bought a 600HD and was recomended to update the firware for version V1.09.11433_20140226_PATCH_A
All went well but everytime I try to play a youtube video just after the dlownload message pops up I get a "unknown error" message.
I tried it with a 4gb flash drive on.
Any hints on what might be the reason for this?

peterblace · May 9, 2014

found the reason why playing youtube videos gave me that "unknown error" message
missing DNS configuration...always learning

peterblace · May 16, 2014

howzit guys...
anyone was already able to set the smart card working?
if so can you give me some hints on what do I need to set to make it work
as far as I understand you need to access the x-tras menu and entre EMU to add card info...but I really don't know how to do
let me know what kind of info you need me to get from the original decoder that is working with the card and I'll provide you that

thanks in advance

JAKITAKI · Jun 2, 2014

02-06-2014

Update ::

* Bulsat (39*E) 06 key

* ORF-AustriaSat 19.2*E
* Sky Link,CS Link Astra 23,5*E
* Other Biss key

JAKITAKI · Jun 11, 2014

600/650HD PATCH_V1.09.12320_09-06-2014_A

- DLNA DMP - Network Player (DLNA DMR removed)
- NC+ PL - Black card fix
- 2 channel descramble (1record + 1watch)
- minor translations fixes
- share fix for 10< servers
- PL share fix
- PL menu translation fixes
- PL fix open some channels from share
- new CryptoDroid support V.2.0.1704
- fix discoverability for CryptoDroid after network crash
- phonecall message on the screen while CryptoDroid connected
- BISS fix
- Added HelloHD 9°E to the Fastscan
- emu SRG

JAKITAKI · Jun 12, 2014

11-06-2014

Update ::

* Bulsat (39*E) 04 key
* TNT (19.2E) fix key

* ORF-AustriaSat 19.2*E
* Sky Link,CS Link Astra 23,5*E
* Other Biss key
