Vivacom Hot Bird@ 13° E

M

moonbase

VIP
Donating Member
Messages
706
117 said:
Morning........looks like results with the Geant OTT 7750 4K.........if so, never compared its tuner sensitivity but seeing your 'fringe' results must be rated ok. 👍
Click to expand...

In my opinion, the Geant OTT 750 4K does not have a sensitive tuner. I have found it to be one of the more modest tuners I use for testing.
It just happens the Geant has IKS and pours gravy to clear some encryptions, that is why I used it for this test.

Just my personal opinion but the dish size, dish Az-El alignment and polarity skew contribute much more than a receiver tuner.
The GTMedia Combo seems to have a more sensitive tuner than the Geant. However, with standard firmware I am not sure if the GT Media Combo has IKS for Nova so I did not use it for the test?

  • Like
Reactions: 117
arkanoid9

arkanoid9

Donating Member
Messages
120
moonbase said:
In my opinion, the Geant OTT 750 4K does not have a sensitive tuner. I have found it to be one of the more modest tuners I use for testing.
It just happens the Geant has IKS and pours gravy to clear some encryptions, that is why I used it for this test.

Just my personal opinion but the dish size, dish Az-El alignment and polarity skew contribute much more than a receiver tuner.
The GTMedia Combo seems to have a more sensitive tuner than the Geant. However, with standard firmware I am not sure if the GT Media Combo has IKS for Nova so I did not use it for the test?
Click to expand...
@moonbase have you moved the dish east-west or have touched something also about the elevation?

M

moonbase

VIP
Donating Member
Messages
706
arkanoid9 said:
@moonbase have you moved the dish east-west or have touched something also about the elevation?
Click to expand...

I manually fine tuned the Azimuth (East/West) and Elevation using an adjustment system that has a resolution accuracy of 0.06 degrees.

My procedure was to record the signal level in dB over an East/West range using 0.06 degree adjustments so that I come into the satellite on one side, pass through it and come out on the other side. I then look at the dB levels and see where they were in the adjustment scale that gave the strongest level and return the dish to that point. The procedure is repeated for Elevation.

For skew, I set the LNB at somewhere close to the theoretical skew value for the satellite at my location, usually to within 0.3 degrees.
There is more tolerance on polarity skew so if I am within 0.5 degrees I leave it at that.

M

moonbase

VIP
Donating Member
Messages
706
To close out on my testing of the frequencies on the South East beam of 13.0E I checked the five unlockable Vivacom's and the one unlockable Nova with a spectrum analyser.
These frequencies are all present and can easily be seen with a spectrum analyser. However, they are quite a way below the level required for a lock.

I have attached some spectra pictures of these six unlockable frequencies below, pictures in ascending order of frequency.
That probably concludes my testing on the South Eastern beam.

Dish Location: South East UK.

.

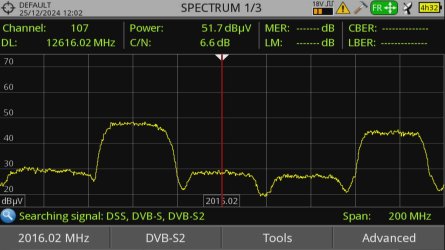

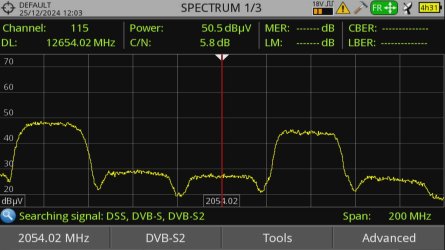

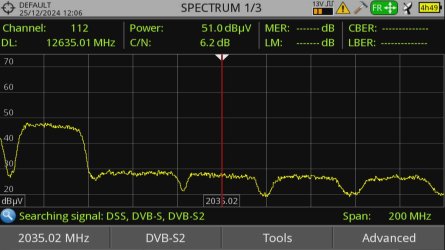

Vivacom_13.0E_12616H.JPG Vivacom_13.0E_12635V.JPG Vivacom_13.0E_12654H.JPG

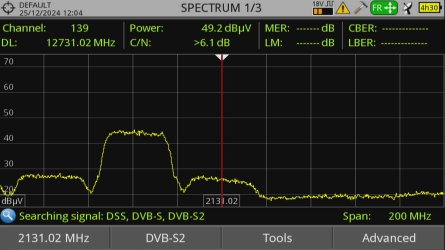

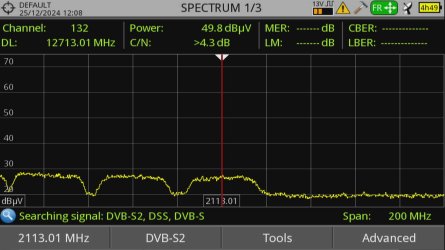

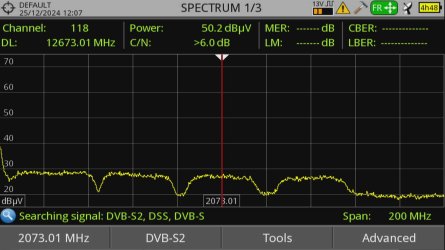

Vivacom_13.0E_12673V.JPG Vivacom_13.0E_12713V.JPG Nova_13.0E_12731H.JPG

A

ahmed202444

Registered
Messages
68
Vivacom package signal is more than excellent
After moved Broadcast to South East Europe Broadcast the signal is very wonderful







barney115

barney115

Donating Member
Staff member
Administrator
Messages
25,825
i got an ER2 Msg on my Vbox as i was trying to catch that Nova GR TP
i replaced my Reed switch but no good still ER2 ...made new F Connector on LNB no use either
it was raining a lot earlier and only stopped a few hrs ago did not get much chance to try a lot else
i only got home a half hour ago but earlier i manually moved arm to 7E and let it sit there around 11am this morning , i do have a new 36" Arm i got delivered few days ago
but i just tried to move Arm again and low and behold its moving fine again ....i'll try again in daylight when i have time as i have marked the Arm so i can put it back to where it was before the ER2 happened , i was seeing a very,very close Lock on 13E 11804 V 30000 earlier but due to the Vbox ER2 dish did stick to 13E and not even move 1 step , so i'll be able to make adjustments when its daylight now dish and Superjack arm moves again and see if i lock that elusive 11804 TP
But VIVACOM at 4-6db is way too weak to even pick up a spike let alone a lock understandable now why its so easy for members a lot further east locations than we are @moonbase .
Good testing once again my friend you have achieved a good goal in locking one very important Freq and shown the others are out of reach which is great progress and great information all together .
Cheers !

M

moonbase

VIP
Donating Member
Messages
706
barney115 said:
... i was seeing a very,very close Lock on 13E 11804 V 30000 earlier but due to the Vbox ER2 dish did stick to 13E and not even move 1 step , so i'll be able to make adjustments when its daylight now dish and Superjack arm moves again and see if i lock that elusive 11804 TP
But VIVACOM at 4-6db is way too weak to even pick up a spike let alone a lock understandable now why its so easy for members a lot further east locations than we are @moonbase .
Good testing once again my friend you have achieved a good goal in locking one very important Freq and shown the others are out of reach which is great progress and great information all together .
Cheers !
Click to expand...


Good luck with 11804V, very nice catch for so far West if you can manage it, the Nova's and Vivacom's all need 9.4dB to get over the line.

In my tests I found the Dr HD F15 receiver would not work on these feeds but a Geant Android receiver locked them OK. The Dr HD F15 keps showing a red signal level indicator below lock level when the spectrum analyser and the Geant Android receiver had locked the Nova's.

Last edited:
M

marvan

Member
Messages
67
EnoSat said:
start 01.02.2019 - https://www.lyngsat.com/muxes/Azerspace-2-Intelsat-38_Europe_12520-V.html
Click to expand...


I mean some changes:


Intelsat 38, 45°E
(03h36) Vivacom: New frequency for Kino Nova: 12520.00MHz, pol.V (DVB-S2 SR:30000 FEC:5/6 SID:1008 PID:1208[MPEG-4]/1308 aac Bulgarian- Irdeto 2 & VideoGuard).

(03h36) Vivacom: New frequency for MAX Sport 3 HD: 12520.00MHz, pol.V (DVB-S2 SR:30000 FEC:5/6 SID:1013 PID:1213[MPEG-4]/1313 aac Bulgarian- Irdeto 2 & VideoGuard).


(03h36) Vivacom: New frequency for MAX Sport 4 HD: 12520.00MHz, pol.V (DVB-S2 SR:30000 FEC:5/6 SID:1022 PID:1222[MPEG-4]/1322 aac Bulgarian- Irdeto 2 & VideoGuard).

(03h36) Vivacom: New frequency for Diema Sport 3 HD: 12520.00MHz, pol.V (DVB-S2 SR:30000 FEC:5/6 SID:1025 PID:1225[MPEG-4]/1325 aac Bulgarian- Irdeto 2 & VideoGuard).

(03h36) Vivacom: New frequency for Diema Sport 2 HD: 12520.00MHz, pol.V (DVB-S2 SR:30000 FEC:5/6 SID:1030 PID:1230[MPEG-4]/1330 aac Bulgarian- Irdeto 2 & VideoGuard).

(03h36) Vivacom: New frequency for MAX Sport 1 HD: 12520.00MHz, pol.V (DVB-S2 SR:30000 FEC:5/6 SID:1036 PID:1236[MPEG-4]/1336 aac Bulgarian- Irdeto 2 & VideoGuard).

(03h36) Vivacom: New frequency for MAX Sport 2 HD: 12520.00MHz, pol.V (DVB-S2 SR:30000 FEC:5/6 SID:1037 PID:1237[MPEG-4]/1337 aac Bulgarian- Irdeto 2 & VideoGuard).

(03h36) Vivacom: New frequency for Diema Sport HD: 12520.00MHz, pol.V (DVB-S2 SR:30000 FEC:5/6 SID:1044 PID:1244[MPEG-4]/1344 aac Bulgarian- Irdeto 2 & VideoGuard).

(03h36) Vivacom: New frequency for EKids: 12520.00MHz, pol.V (DVB-S2 SR:30000 FEC:5/6 SID:1060 PID:1260[MPEG-4]/1360 aac Bulgarian- Irdeto 2 & VideoGuard).

(03h36) Vivacom: New SID for BNT 2 on 12520.00MHz, pol.V FEC:5/6 SR:30000: SID:1014 ( PID:1214[MPEG-4]/1314 aac Bulgarian - Irdeto 2 & VideoGuard).

(03h36) Vivacom: New SID for HBO 2 Bulgaria on 12520.00MHz, pol.V FEC:5/6 SR:30000: SID:1027 ( PID:1227[MPEG-4]/1327 aac Bulgarian,1427 aac English - Irdeto 2 & VideoGuard).

(03h36) Vivacom: New SID for HBO Bulgaria on 12520.00MHz, pol.V FEC:5/6 SR:30000: SID:1029 ( PID:1229[MPEG-4]/1329 aac Bulgarian,1429 aac English - Irdeto 2 & VideoGuard).

(03h36) Vivacom: New SID for Vivacom Arena on 12520.00MHz, pol.V FEC:5/6 SR:30000: SID:1034 ( PID:1234[MPEG-4]/1334 aac Bulgarian - Irdeto 2 & VideoGuard).

(03h36) Vivacom: New SID for Nova News HD on 12520.00MHz, pol.V FEC:5/6 SR:30000: SID:1046 ( PID:1246[MPEG-4] /1346 aac Bulgarian - Irdeto 2 & VideoGuard).

(03h36) Vivacom: Travel Channel has left 12520.00MHz, pol.V (DVB-S2 SID:101 PID:1201[MPEG-4]/1301 aac Bulgarian,1401 aac English)

(03h36) Vivacom: BNT 1 has left 12520.00MHz, pol.V (DVB-S2 SID:103 PID:1203[MPEG-4]/1303 aac Bulgarian)

(03h36) Vivacom: Dizi TV has left 12520.00MHz, pol.V (DVB-S2 SID:104 PID:1204[MPEG-4]/1304 aac Bulgarian)

(03h36) Vivacom: Diema has left 12520.00MHz, pol.V (DVB-S2 SID:105 PID:1205[MPEG-4]/1305 aac Bulgarian)

(03h36) Vivacom: Diema Family has left 12520.00MHz, pol.V (DVB-S2 SID:107 PID:1207[MPEG-4]/1307 aac Bulgarian)


(03h36) Vivacom: Kino Nova has left 12520.00MHz, pol.V (DVB-S2 SID:108 PID:1208[MPEG-4]/1308 aac Bulgarian)

(03h36) Vivacom: Balkanika has left 12520.00MHz, pol.V (DVB-S2 SID:111 PID:1211[MPEG-4]/1311 aac Bulgarian)

(03h36) Vivacom: MTV 00s has left 12520.00MHz, pol.V (DVB-S2 SID:112 PID:1212[MPEG-4]/1312 aac English)

(03h36) Vivacom: Investigation Discovery Europe has left 12520.00MHz, pol.V (DVB-S2 SID:113 PID:1213[MPEG-4]/1313 aac Bulgarian)

(03h36) Vivacom: Diema has left 12520.00MHz, pol.V (DVB-S2 SID:116 PID:1216[MPEG-4] /1316 aac Bulgarian)

(03h36) Vivacom: Diema Family has left 12520.00MHz, pol.V (DVB-S2 SID:117 PID:1217[MPEG-4] /1317 aac Bulgarian)

(03h36) Vivacom: Fantazzy TV has left 12520.00MHz, pol.V (DVB-S2 SID:120 PID:1220[MPEG-4]/1320 aac Bulgarian,1420 aac Turkish)

(03h36) Vivacom: Viasat History has left 12520.00MHz, pol.V (DVB-S2 SID:121 PID:1221[MPEG-4]/1321 aac Bulgarian,1421 aac Russian)

(03h36) Vivacom: Epic Drama has left 12520.00MHz, pol.V (DVB-S2 SID:122 PID:1222[MPEG-4]/1322 aac Bulgarian)

(03h36) Vivacom: TV 1000 East has left 12520.00MHz, pol.V (DVB-S2 SID:126 PID:1226[MPEG-4]/1326 aac Bulgarian)

(03h36) Vivacom: Hustler TV has left 12520.00MHz, pol.V (DVB-S2 SID:127 PID:1227[MPEG-4]/1327 aac English)

(03h36) Vivacom: Nickelodeon Bulgaria has left 12520.00MHz, pol.V (DVB-S2 SID:128 PID:1228[MPEG-4]/1328 aac Bulgarian,1428 aac English)

(03h36) Vivacom: MTV 90s has left 12520.00MHz, pol.V (DVB-S2 SID:129 PID:1229[MPEG-4]/1329 aac English)

(03h36) Vivacom: Disney Channel Bulgaria has left 12520.00MHz, pol.V (DVB-S2 SID:130 PID:1230[MPEG-4]/1330 aac Bulgarian)

(03h36) Vivacom: Disney Junior Bulgaria has left 12520.00MHz, pol.V (DVB-S2 SID:131 PID:1231[MPEG-4]/1331 aac Bulgarian)

(03h36) Vivacom: Dom Kino Premium has left 12520.00MHz, pol.V (DVB-S2 SID:135 PID:1235[MPEG-4]/1335 aac Russian)

(03h36) Vivacom: Kino Nova has left 12520.00MHz, pol.V (DVB-S2 SID:136 PID:1236[MPEG-4] /1336 aac Bulgarian)

(03h36) Vivacom: Chasse et Pêche has left 12520.00MHz, pol.V (DVB-S2 SID:139 PID:1239[MPEG-4]/1339 aac French,1439 aac Turkish)

(03h36) Vivacom: H2 has left 12520.00MHz, pol.V (DVB-S2 SID:140 PID:1240[MPEG-4]/1340 aac English)

(03h36) Vivacom: DW-TV (Deutsche Welle) has left 12520.00MHz, pol.V (DVB-S2 SID:141 PID:1241[MPEG-4]/1341 aac English)


(03h36) Vivacom: Peretz International has left 12520.00MHz, pol.V (DVB-S2 SID:142 PID:1242[MPEG-4]/1342 aac Russian)

(03h36) Vivacom: Extreme Sports has left 12520.00MHz, pol.V (DVB-S2 SID:143 PID:1243[MPEG-4]/1343 aac English,1443 aac Russian)

(03h36) Vivacom: CineStar TV Bulgaria has left 12520.00MHz, pol.V (DVB-S2 SID:147 PID:1247[MPEG-4]/1347 aac Bulgarian)

(03h36) Vivacom: CineStar Action and Thriller has left 12520.00MHz, pol.V (DVB-S2 SID:148 PID:1248[MPEG-4]/1348 aac Bulgarian)

(03h36) Vivacom: Super Toons has left 12520.00MHz, pol.V (DVB-S2 SID:149 PID:1249[MPEG-4]/1349 aac English)

(03h36) Vivacom: Cinemax East Europe has left 12520.00MHz, pol.V (DVB-S2 SID:226 PID:2226[MPEG-4]/2326 aac Bulgarian)

EnoSat

EnoSat

Well Known Member
Messages
2,255
Changes happen every day.
Current status:

But the thread is focused on revenue opportunities rather than the provider's content offering.

Last edited:
A

ahmed202444

Registered
Messages
68
barney115 said:
i got an ER2 Msg on my Vbox as i was trying to catch that Nova GR TP
i replaced my Reed switch but no good still ER2 ...made new F Connector on LNB no use either
it was raining a lot earlier and only stopped a few hrs ago did not get much chance to try a lot else
i only got home a half hour ago but earlier i manually moved arm to 7E and let it sit there around 11am this morning , i do have a new 36" Arm i got delivered few days ago
but i just tried to move Arm again and low and behold its moving fine again ....i'll try again in daylight when i have time as i have marked the Arm so i can put it back to where it was before the ER2 happened , i was seeing a very,very close Lock on 13E 11804 V 30000 earlier but due to the Vbox ER2 dish did stick to 13E and not even move 1 step , so i'll be able to make adjustments when its daylight now dish and Superjack arm moves again and see if i lock that elusive 11804 TP
But VIVACOM at 4-6db is way too weak to even pick up a spike let alone a lock understandable now why its so easy for members a lot further east locations than we are @moonbase .
Good testing once again my friend you have achieved a good goal in locking one very important Freq and shown the others are out of reach which is great progress and great information all together .
Cheers !
Click to expand...

Frequency 11804 with 16.20 dB is very high

Can you take pictures of your attempt to receive and adjust your dish?


M

moonbase

VIP
Donating Member
Messages
706
manic01 said:
You are in Libya @barney115 is in Eire
Click to expand...


100% agreed.

We all know it is easy for anyone in the footprint beam to receive the Nova and Vivacom frequencies from the South East Beam of 13.0E.
The point made by @barney115 is that for people outside of the footprint beam it is difficult to receive these frequencies.

For people in Ireland or the UK these frequencies are not easy to receive. That is the point.

L

lucoil

Registered
Messages
47
12520V is left to operate for the holidays with basic channels, as long as people who have not yet switched to 13E are not without TV. After the new year, 12520 will be turned off
