Spanish Abertis DTT Sat @ Hispasat 30W - Chat & How to guides

pbnet

Registered
Messages
8
Does abertis still work for you with Astra-SM on OpenATV 7.4?
It doesn't for me and would really appreciate some guidance to make it work again.
Thank you.


kegnkiwi

Staff member
Moderator
Messages
1,405
Does abertis still work for you with Astra-SM on OpenATV 7.4?
It doesn't for me and would really appreciate some guidance to make it work again.
Thank you.
I said that i would check some channels on 30w such as sport tv 1 , sport tv 3 ,sport tv 4 , sport tv 5, sport tv 6 from meo and nos this morning. Using openspa and ncam 15 none of these channels where opening. I can check later on my forever server box to see if any open. Can also check for abertis later this evening.

Last edited:

pbnet

Registered
Messages
8
I said that i would check some channels on 30w such as sport tv 1 , sport tv 3 ,sport tv 4 , sport tv 5, sport tv 6 from meo and nos this morning. Using openspa and ncam 15 none of these channels where opening. I can check later on my forever server box to see if any open.
Thanks a lot. MEO channels are working for me with NCAM on 30W.


kegnkiwi

Staff member
Moderator
Messages
1,405
Thanks a lot. MEO channels are working for me with NCAM on 30W.
It's good to know, some of the channels did clear for me this morning but none of the sports channels. It was also very early this morning and a new image i put on the box yesterday. I can check later with different images that i have on the box.

Last edited:

EnoSat

Well Known Member
Messages
2,273
Does abertis still work for you with Astra-SM on OpenATV 7.4?
It doesn't for me and would really appreciate some guidance to make it work again.
Thank you.
No problem, still works in OpenATV (problem is with latest DefineOS)


marrakr

Senior Member
Messages
318
Hopefully an oscam developper come here in help us to test @EnoSat idea bellow !

https://www.sat-universe.com/index....30w-chat-how-to-guides.306087/post-2037300221
I'm not a oscam developer but I spent some time to try to fix it recently (sadly not fixed yet, maybe I need some help)
I build own oscam with some dvbapi debugging msgs and @EnoSat hint it's not helping since with f:05 oscam dvbapi code does not even catch this method dvbapi_get_service_type.
According to my debugging the issue is earlier in method dvbapi_main_local in:
Code:
                rc = 0;
                while(!(listenfd == -1 && cfg.dvbapi_pmtmode == 6))
                {
                        rc = poll(pfd2, pfdcount, 500);
                        cs_log("dvbapi_main_local_loop4a rc=%d", rc); //my code
                        if(rc < 0) // error occured while polling for fd's with fresh data
                        {
                                cs_log("dvbapi_main_local_loop errno=%d", errno); //my code
                                if(errno == EINTR || errno == EAGAIN) // try again in case of interrupt
                                {
                                        continue;
                                }
                                cs_log("ERROR: error on poll of %d fd's (errno=%d %s)", pfdcount, errno, strerror(errno));
                                break;
                        }
                        else
                        {
                                break;
                        }
                }
There is rc param which returns (in case of f:04 or f:05) -1 every time and errno = 4 (EINTR)
Only in case of f:01 there is returned rc=1 and valid revents.
I don't know why this poll is interrupted this way every time and how to fix it. I was trying to increase and decrease timeout (500) but it does not help.
If anyone has any idea I can test it :)


tiraito

Registered
Messages
3
hi, I have updated my image to openatv 7.5.1 and restored my settings but abertis channels hispasat do not work anymore. Astra-sm is already installed. I have tried to run again telnet script from Mohamed19 OS but does not work on openatv 7.5.1.
my box is octagon sf8008 4K. any help?


tiraito

Registered
Messages
3
hi, I have updated my image to openatv 7.5.1 and restored my settings but abertis channels hispasat do not work anymore. Astra-sm is already installed. I have tried to run again telnet script from Mohamed19 OS but does not work on openatv 7.5.1.
my box is octagon sf8008 4K. any help?
I reply myself because I have found the solution installing a plugin with telnet. To installing it you must copy and paste this command:

wget -q "--no-check-certificate" https://raw.githubusercontent.com/ciefp/CiefpSettingsT2miAbertis/main/installer.sh -O - | /bin/sh

once installed run the plugin and restart.


mouadhada

Senior Member
Messages
197
I'm not a oscam developer but I spent some time to try to fix it recently (sadly not fixed yet, maybe I need some help)
I build own oscam with some dvbapi debugging msgs and @EnoSat hint it's not helping since with f:05 oscam dvbapi code does not even catch this method dvbapi_get_service_type.
According to my debugging the issue is earlier in method dvbapi_main_local in:
Code:
                rc = 0;
                while(!(listenfd == -1 && cfg.dvbapi_pmtmode == 6))
                {
                        rc = poll(pfd2, pfdcount, 500);
                        cs_log("dvbapi_main_local_loop4a rc=%d", rc); //my code
                        if(rc < 0) // error occured while polling for fd's with fresh data
                        {
                                cs_log("dvbapi_main_local_loop errno=%d", errno); //my code
                                if(errno == EINTR || errno == EAGAIN) // try again in case of interrupt
                                {
                                        continue;
                                }
                                cs_log("ERROR: error on poll of %d fd's (errno=%d %s)", pfdcount, errno, strerror(errno));
                                break;
                        }
                        else
                        {
                                break;
                        }
                }
There is rc param which returns (in case of f:04 or f:05) -1 every time and errno = 4 (EINTR)
Only in case of f:01 there is returned rc=1 and valid revents.
I don't know why this poll is interrupted this way every time and how to fix it. I was trying to increase and decrease timeout (500) but it does not help.
If anyone has any idea I can test it :)
did you try the idea in this post ?
Post in thread 'Spanish Abertis DTT Sat @ Hispasat 30W - Chat & How to guides'
https://www.sat-universe.com/index....30w-chat-how-to-guides.306087/post-2037300221
I am saying this because I didn’t see 0x64 suggested by @EnoSat in your code !


EnoSat

Well Known Member
Messages
2,273
In DefineOS, changes are applied only by the FW manufacturer, you cannot modify anything (new transponder, new mode, ...)


Djuiice

Feed Hunter
Messages
379
Hi
Zgem H8 2H
Openatv 7.5.1
Add as like this:
- astra-sm
- astra.conf
- abertis
- softcam.key (/etc/tuxbox/config/)
- softcam.key (/etc/tuxbox/config/oscam-emu/)
But after scaning channels like up...what next step? ( Abertis at 30W )

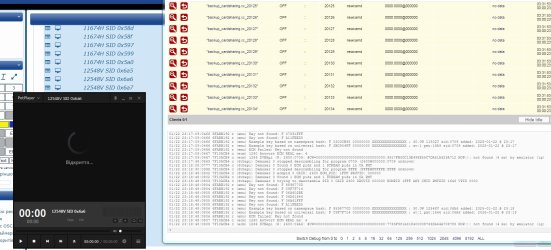

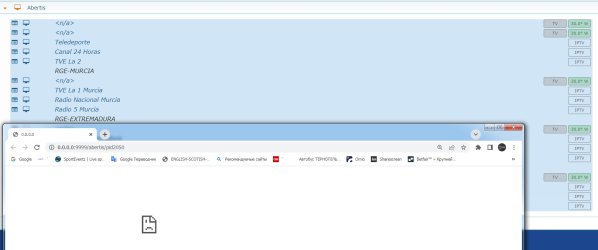

abertis 2.jpg

Abertis 01.jpg

Last edited:
