Dish for 7E feeds

aramrahgozar

aramrahgozar

Registered
Messages
9
Hi guys
I want to get 7E feeds, but I don't know what size dish I must have. I live in Tehran and this is the char I got from flysat:

7B Europe A > 45dBW > 85-105cm
7B Europe B > 51dBW > 50cm
7B Europe C > No beam
7C Western > 47dBW > 65-85cm
7C Eastern > 51dBW > 50cm

Is this the correct way of calculation, or the feed's frequency need a much stronger signal?

barney115

barney115

Donating Member
Staff member
Administrator
Messages
26,251
Since 7E does not currently have any actual Perm Channels with exception of NOW News 10720 V 27500
This would be possible on 85-105cm i currently get 16.6db 97% on my 2 meter Prime Focus dish .
But as such for past years then that chart guide is utterly irrelevant today .
For 7 East feeds with a decent signal for feeds you will be needing at least 1.4 meter dish dish but ideal would be 1.8 meter size dish
even at that given your location it may depend on weather conditions also .
Broadcasters do always love to Reduce many Feed signals especially on 7 EAST etc.. making even a 1.2m dish size totally useless and inadequate .
The bigger size dish the better chance of no Pixelations or even no lock at all .

Good luck : )

barney115

barney115

Donating Member
Staff member
Administrator
Messages
26,251

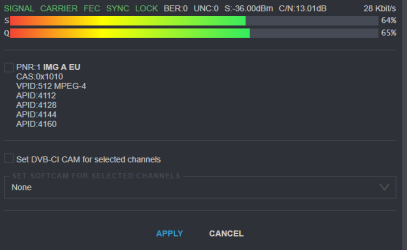

Yes good info for IMGA EU Feed its always usually above 13db so a small dish like that with good LNB is very likely to pick it up
but depending on weather obviously .

N

nico39

Registered
Messages
68
I am interested in feed broadcasts. I will setting up a dish for Eutelsat 7.0E. Currently, which active transponder has the lowest signal? Should I use the transponder with the lowest signal or the one with the highest signal as a reference for the setup? My dish is 90cm and I from Manisa, Turkey. Please guide me, experts.

HBO

HBO

Registered
Donating Member
Messages
1,500
edir66 said:
Like you said, feeds generally have much lower signal and require larger dishes.
As an example, I receive most of 7E frequencies with around 80% signal with a T90 dish (96x108) in Istanbul, but this is all I get on a feed frequency:

Click to expand...

satellite signal is measured in dB. don't worry about the % . each device displays differently. but dB does not change.

A

achilliess

Registered
Messages
7
edir66 said:
Like you said, feeds generally have much lower signal and require larger dishes.
As an example, I receive most of 7E frequencies with around 80% signal with a T90 dish (96x108) in Istanbul, but this is all I get on a feed frequency:

Click to expand...

same on me in Kocaeli
Dish size is 135x125 offset and i got only 10db strength on 11010 v 7200

I have tryed a few lnb for increasing quality but did not work.
I think dish size is not big enough to get strength feed signal.
